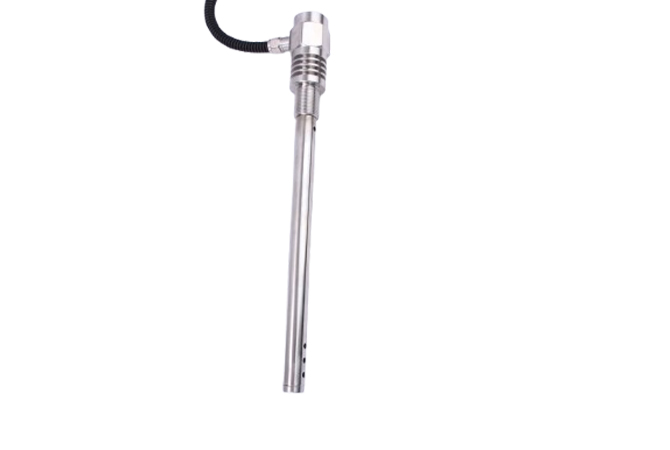

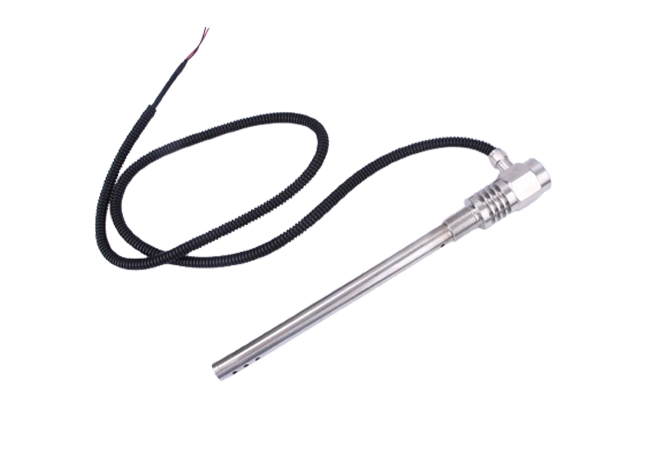

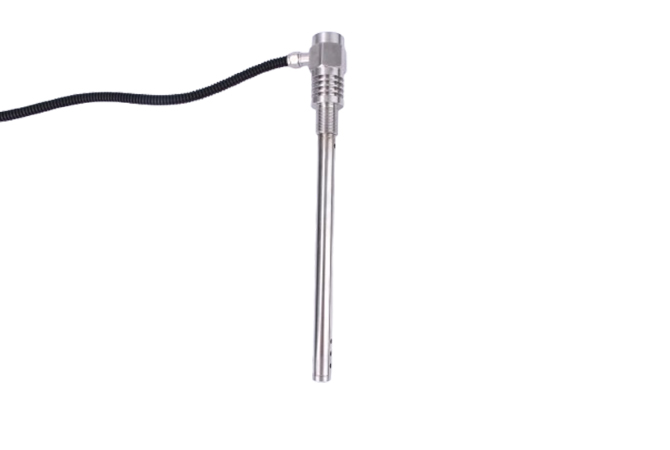

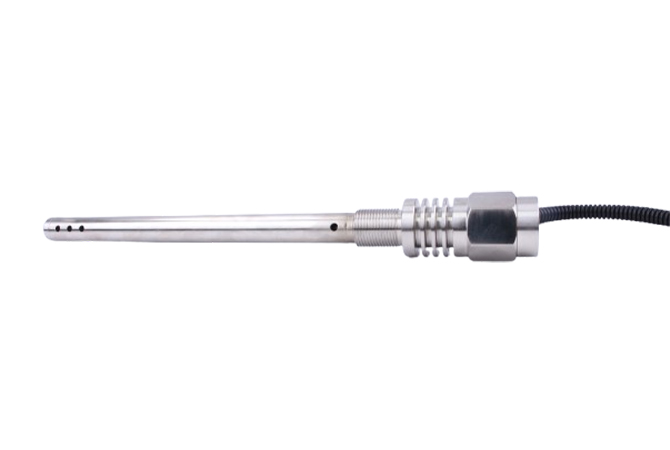

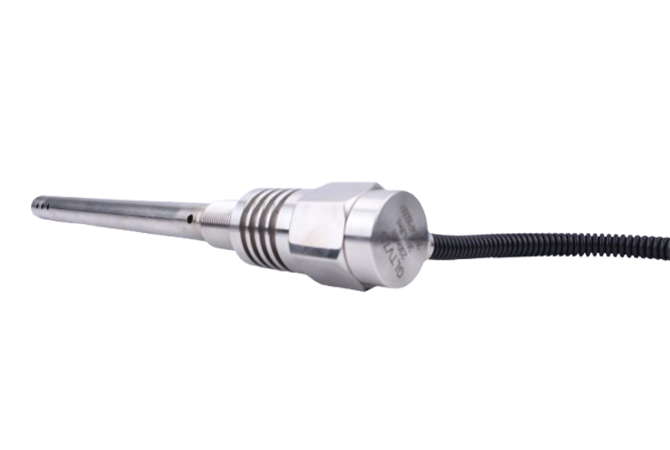

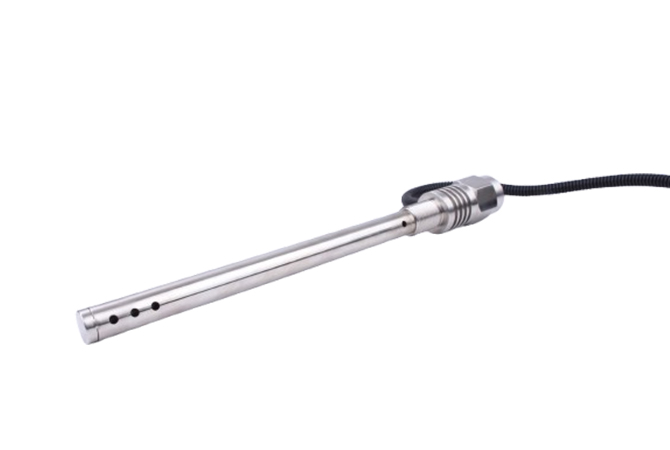

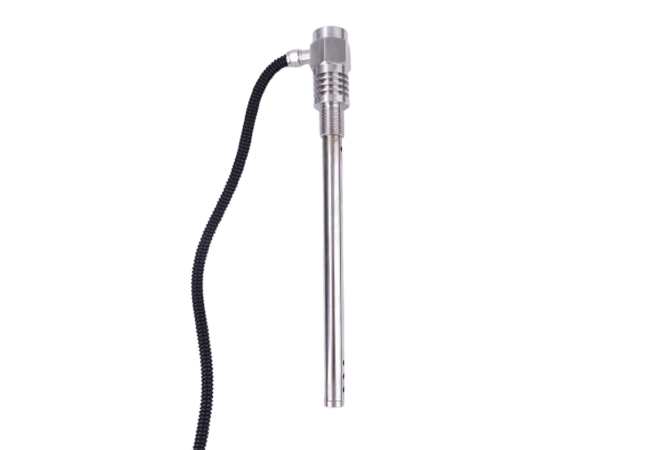

GLTV7G Capacitive Liquid Level Sensor

Product Introduction

Product Features

• Measuring range：50mm~2000mm
• Accuracy: ±1%（high temperature）,±2.5%（low temperature）
• Pressure rating: ≤32MPa（at room temperature）
• Probe temperature range: -200-200℃
• Probe diameter: φ8mm/φ16mm（OEM）
• Output signal: 4～20mA/0-5V/0-10V
• Supply voltage:  12～28VDC
• Mounting type: Threaded installation-M20×1. 5, G1/2, custom thread specifications available upon request
• Long-term stability:  ≤0 .2%FS/Yr，
• Temperature drift：≤0.0 2%FS/℃ （within the 0–70°C range）
• Protection grade：IP68

Product Application

High-pressure vessel liquid level measurement

Reactor liquid level measurement

High-temperature medium liquid level monitoring

Low-temperature medium liquid level measurement

Technical Parameters

Items Parameters

• Range 50 ~2000mm(Can be cut freely)
• Medium Corrosive, high temperature and high pressure medium,CO2, ultra-low temperature liquefied gases such as liquid nitrogen and LNG (liquefied natural gas)
• Output signals Analog ：4-20mA，0 ~5V ，0.5~4.5v
• Digital ：RS485  (OEM available upon request)
•  Power supply DC 12~28V/ 5V
• Accuracy ±1%（High temperature）,±2.5%（low temperature）
• Working temperature -40 ~ +85℃
• Medium temperature -200~+200℃
• Wire PVC (PA corrugated tube sheath available as an option)
• Protection grade IP68
• Probe material Stainless steel/PTFE
• Installation method M20*1.5/G1/2(OEM)
