GAMICOS-GLTV7S capacitive level sensor

Fuel, Oil, Water, Liquids, Chemicals

100~1400mm (can be OEM)

4-20mA 0-3.3VDC 0-5VDC RS485 RS232
Stainless steel probe
ExdⅡC T5
Widely used in diesel, gasoline and kerosene etc.
Suitable for vehicle, truck, coach, agrimotor, GPS fleet management, GPS tracking system, generator set, construction machinery, etc.
Compatible with GPS market leading GPS tracker and software to monitor fuel level at any time.

Get Quotes

GLTV7S capacitive level sensor continuously measures the oil level by changing the capacitance caused

by the rise or fall of the fuel level. The product uses a stainless steel probe rod, and the entire product

has no moving parts. Therefore, the product has good corrosion resistance, high precision, and good

stability. We can provide professional customization services, and you can customize products from

100mm to 1400mm according to your tank height. In addition to the wide range, the GLTV7S capacitive

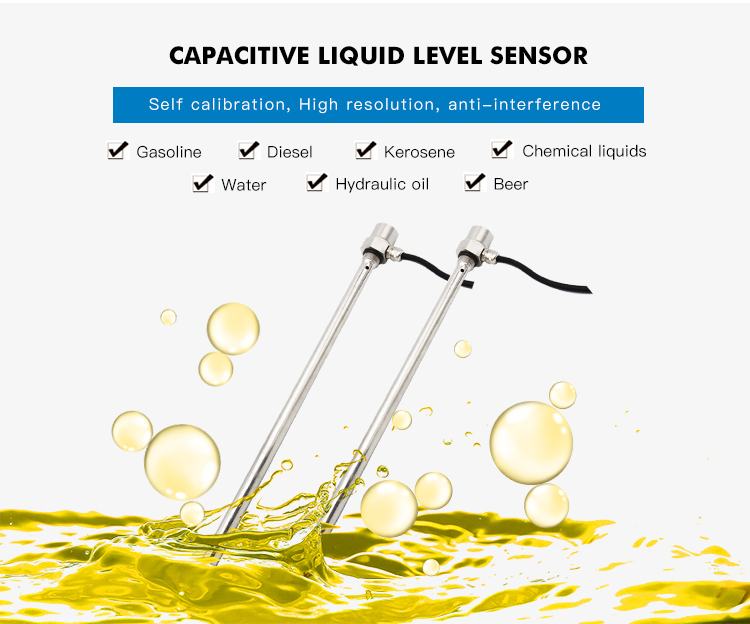

water level sensor has strong media compatibility and can measure common oils such as diesel, gasoline,

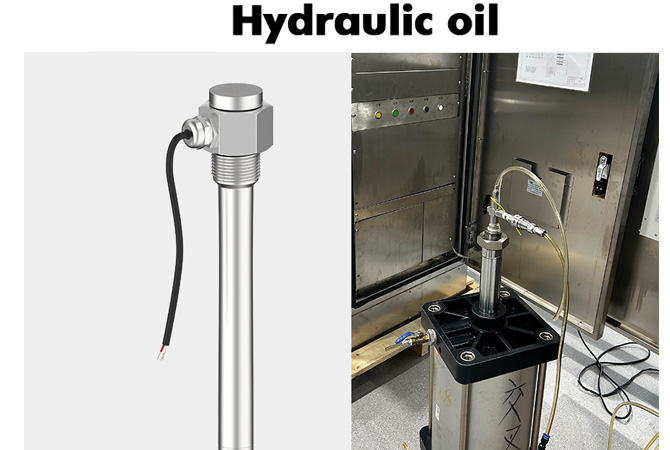

kerosene, hydrostatic oil, pneumatic oil, etc., as well as conductive liquids such as water, beer, and various

chemical liquids. In addition, our probe rod can be customized with protective probe rods such as PFA and

other materials.

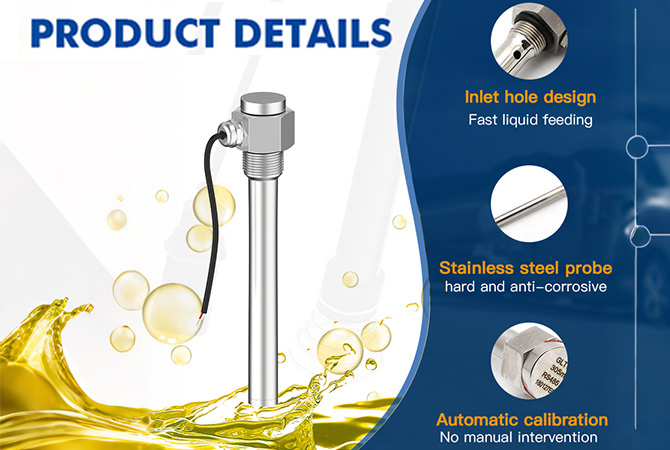

Product Characteristics

Military grade components, full digital sampling, no AD adversion
No manual intervention, self-calibration, no temperature drift
High resolution and high measurement precision
Anti - viscosity, anti-hanging material, anti-foam interference
The shell is made of all-metal material
Ultra-low power consumption
Strong anti-interference ability

Parameter

Level range	100~1400mm (can be OEM)
Power supply	DC5V 9～36V
Accuracy	±1%
Resolution	0.01mm
Environment temp.	-35~70℃
Probe diameter	Φ16
Pressure range	-0.1MPa～0.4MPa
Working current	＜10mA
Material	Stainless steel
Explosion proof	ExdⅡC T5
Installation way	Standard 5 hole flange or thread M20×1.5(others can be OEM)

Application

Automobile manufacturers, automobile reloading plants, aerospace, railway, vehicles, buses, logistics

vehicles, diesel generating sets, engineering machinery, oil tankers, oil tanks etc.

FAQs

1. Does it need vertical installation?
Yes, install vertically at the tank bottom to ensure full oil contact and accurate pressure detection.
2. How does auto-calibration work?
It auto-calibrates when powered on or if accuracy drifts, no manual adjustment needed.
3. Can it measure non-oil liquids?
Yes, works with water, chemicals, and oils (adjusts to different dielectric constants auto).
4. What is its accuracy
±1% FS, auto calibration ensures long term accuracy without drift
5. Can it resist static?
Yes, built-in anti-static circuitry to avoid reading drift from fast oil flow.
6. Is it suitable for open tanks?

Yes, stainless steel resists outdoor rust; auto-calibration adapts to temperature changes.

Company Profile

GAMICOS is a high-tech liquid level and pressure measurement Internet brand integrating R&D,

production and sales. It is committed to becoming an excellent solution service in the liquid level

and pressure measurement industry. At present, it mainly produces pressure sensors, liquid level

sensors, fuel level sensors, water level meters, ultrasonic level meters, radar level meters, and

series products of Lora/GPRS/NB-IOT/4G Wireless measuring instrument. Over the years, the

products have been sold to more than 100 countries and regions such as the United States, India,

Russia, Germany, Australia, Brazil, Portugal, Saudi Arabia and South Africa, serving thousands of

customers every year. To meet the needs of diverse users, the brand also provides OEM And ODM services.
