Product Description

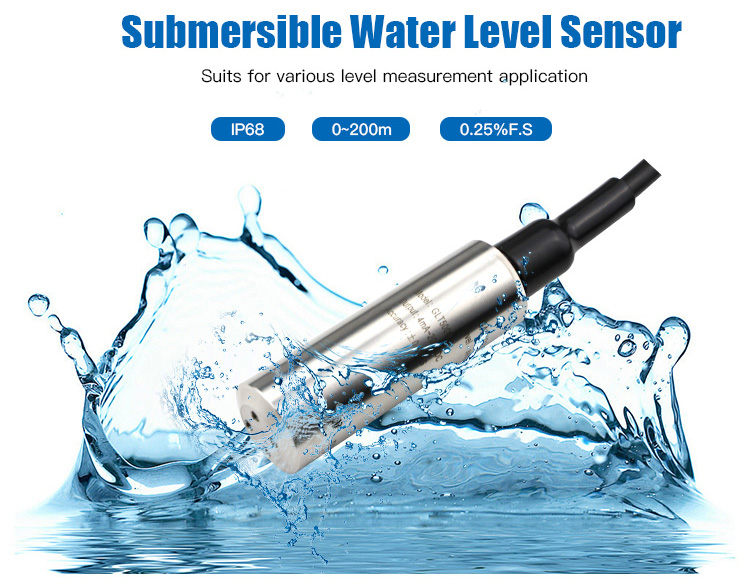

GAMICOS submersible level sensor uses silicon piezoresistive core as sensitive element, integrated design, ensures IP68 high waterproof performance, even if immersed in water for a long time, the product can work normally. GLT500 level sensor has the features of high accuracy and good long-term stability. It is very suitable for level measurement of water tanks, wells, rivers and lakes. GAMICOS provides OEM customization, you can customize products according to specific industry applications. The shell and diaphragm are made of stainless steel 316L, which has good corrosion resistance. This product can also be connected to PLC, panel meter, data logger, paperless recorder and other equipment. GLT500 water level sensor is simple to operate, easy to use, it is your ideal level measurement product.
Product Features
-
GLT500 high range submersible level transmitter, precise, reliable and industrial grade
-
Measure deep water levels up to 200 meters ideal for deep wells, reservoirs, dams, irrigation systems, and industrial tanks
-
The GLT500 uses hydrostatic pressure principle to deliver stable readings even in turbulent or remote environments
-
Flexible output options for any system choose from 4~20mA (current loop), voltage signals (0~5V, 0~10V, etc.), or digital RS485 (Modbus RTU),
-
Plug and play with PLCs, data loggers, SCADA, or IoT platforms.
-

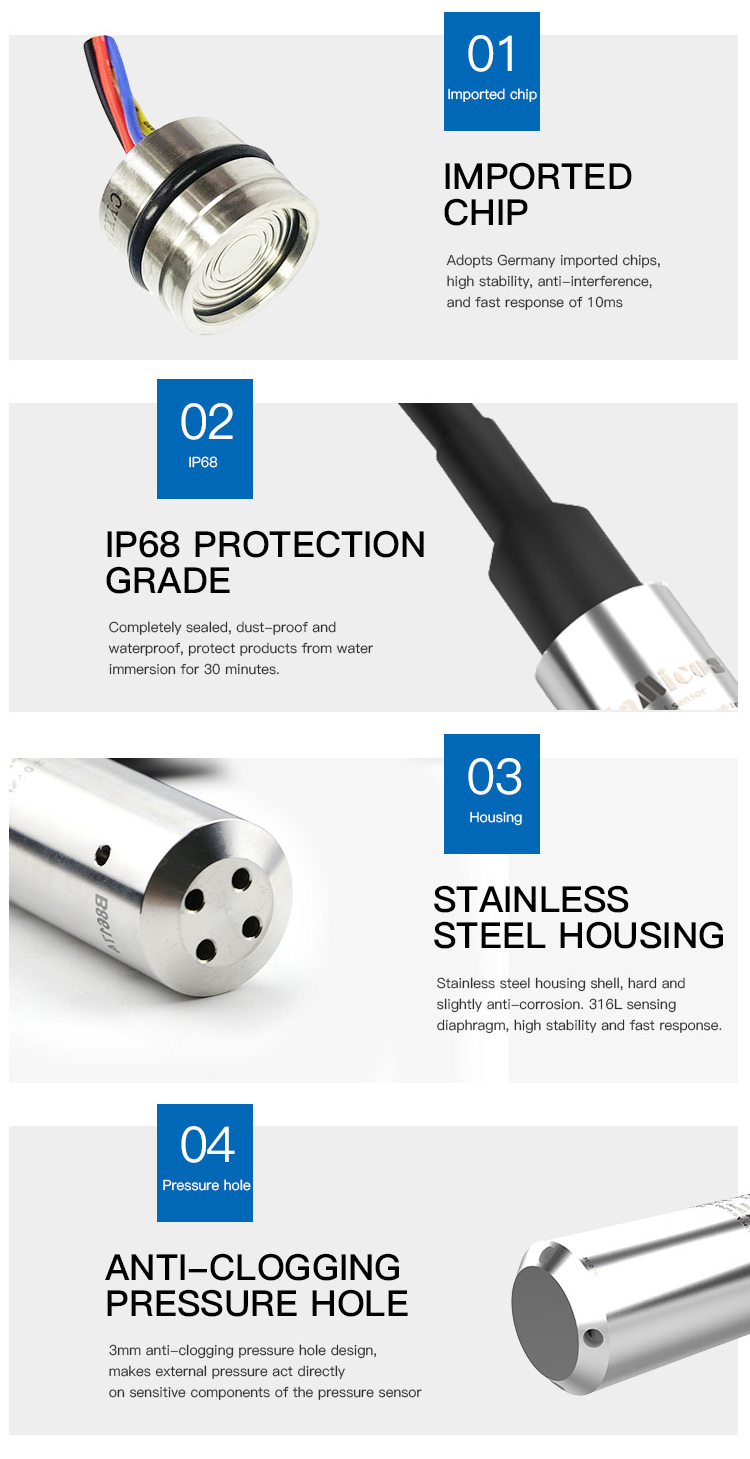

Built for harsh conditions, wetted parts, 316L stainless steel, resists corrosion in freshwater, seawater, and mild chemicals
-

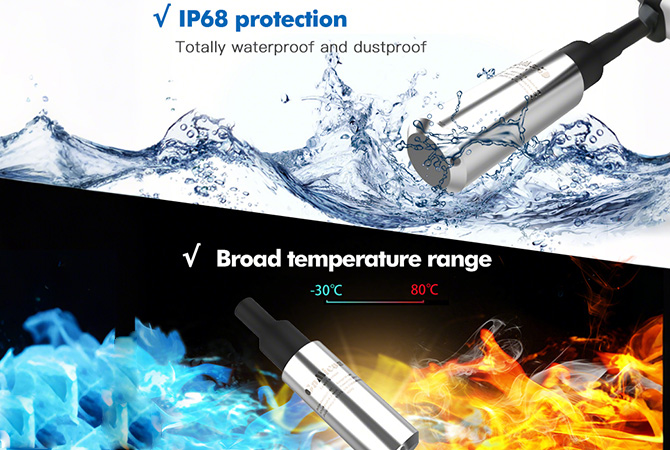

Operating temp: -30°C to +80°C
-
Vibration resistant: 20g (20~5000 Hz)
-
Long-term drift: <±0.2% FS/year, minimal recalibration needed
-
Easy installation and customization
-
Standard 5m cable (extendable on request)
-
Supports OEM/ODM, customize range, output, cable length, or housing
-
1-year warranty and lifetime technical support
Product Parameters
Pressure range
|
0...1m~200m
|
Pressure type
|
Gauge
|
Output signal
|
4~20mA,0~5V,1~5V,0.5~4.5V,0~10V,RS485
|
Power supply
|
5V,10~30VDC
|
Compensated temperature range
|
-10~70℃
|
Operating temperature range
|
-30~80℃
|
Storage temperature range
|
-40~125℃
|
Over pressure
|
150%FS
|
Mechanical Vibration
|
20g(20-5000HZ)
|
Shock/Impact
|
100g(11ms)
|
Comprehensive error
|
±0.5%FS(standard) ,±0.25%FS
|
long-term stability
|
±0.2%FS/year
|
Medium compatible
|
Compatible with 316L SS of all kinds of medium
|
Protection
|
IP68
|
Perfect Solution

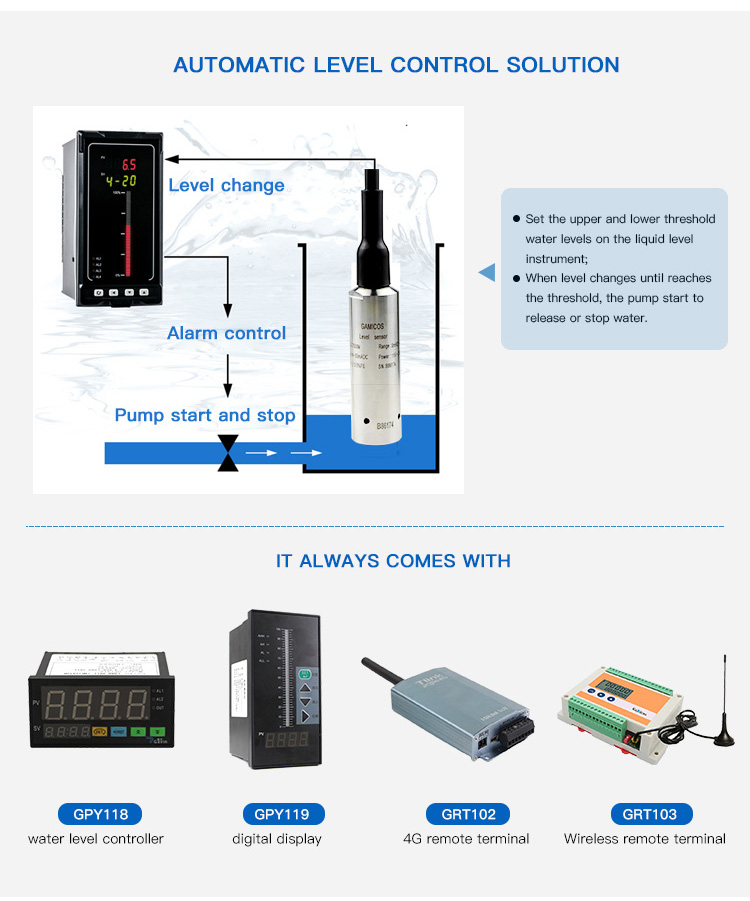

GAMICOS GLT500 water pressure level sensor helps to control the pump opens and starts in the water tanks. You can set the upper and lower threshold water levels on the liquid level instrument. When level changes until reaches the threshold, the pump starts to release or stop water.

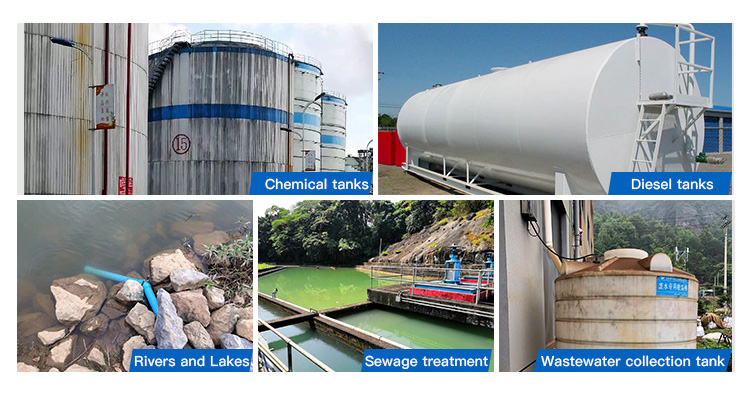

Application

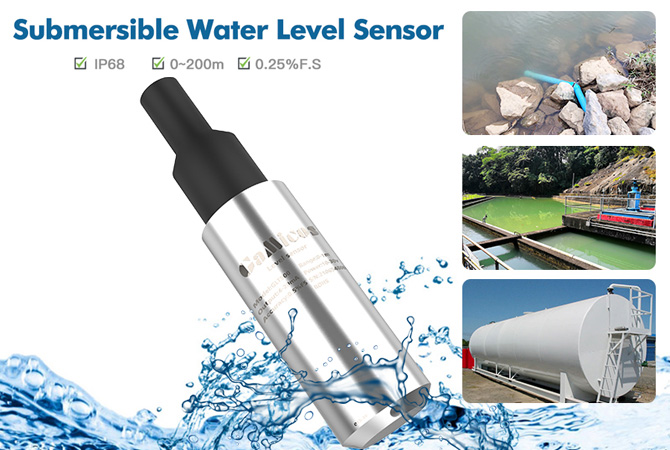

GAMICOS GLT500 pressure level sensor is suitable for the following applications like rivers and lakes, sewage treatment, chemical tanks, diesel tanks, wastewater collection tanks, firefighting, etc.
FAQs
1. What is a submersible level sensor?
A: It's a device designed to be fully submerged in liquids to measure and monitor liquid level, pressure, or sometimes temperature.
2. What's the main purpose of a submersible level sensor?
A: To accurately detect liquid levels in tanks, wells, rivers, or reservoirs for applications like water management, industrial storage, or environmental monitoring.
3. What is the minimum measurement range of your products?
A: The minimum is 1m, and the measurement range of our products is 0~1m ... 500m (for water).
4. What is the protection grade of your products?
A: For submersible level sensor : IP68
5. What output signals do submersible level sensors typically provide?
A: Common outputs include 4-20mA, 0-10V, RS485 (Modbus), or wireless signals (LoRa, SWSN, 4G) for remote monitoring.
6. What is the purpose of the vent tube in the cable?
A: To provide a reference to atmospheric pressure for gauge pressure sensors.
7. What happens if the vent tube gets clogged or kinked?
A: The sensor will provide an inaccurate reading.
8. What is an absolute pressure submersible sensor?
A: One referenced to a perfect vacuum; used where atmospheric pressure varies.
Company Profile
GAMICOS is a brand focuses on instruments R&D, manufacturing, sales and service of the sensors, transmitters,
and the supporting instruments. The main products include pressure sensor, water level sensor, ultrasonic level
sensor, radar level meter, fuel level sensor and water level meter. Core products all passed EU CE, RoHS testing,
part products have obtained explosion-proof and flameproof certification, China Classification Society CSS
certification.
Through constant improving and enhancing product quality, and expanding product applicational area, our
products are widely used in petrochemical industry, water conservancy and hydrology, mechanical equipments,
process control, oil level measurement, agricultural irrigation, etc. Except for meeting domestic requirements,
GAMICOS has exported to more than 100 countries and regions globally including the US, Germany, Russia,
Portugal, Saudi Arabia, South Asia, India, Australian, Brasil, etc.

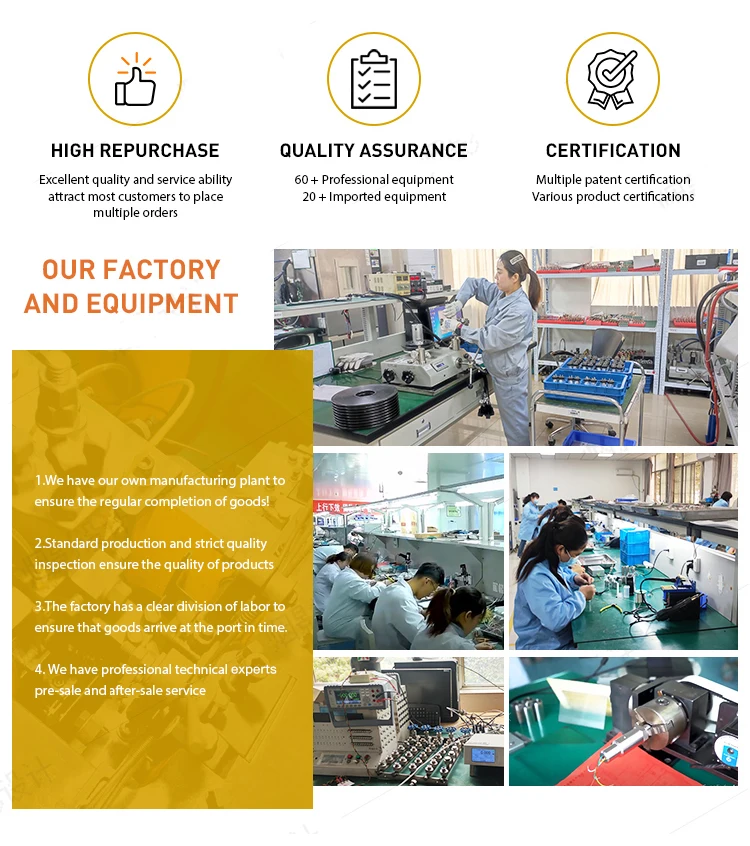

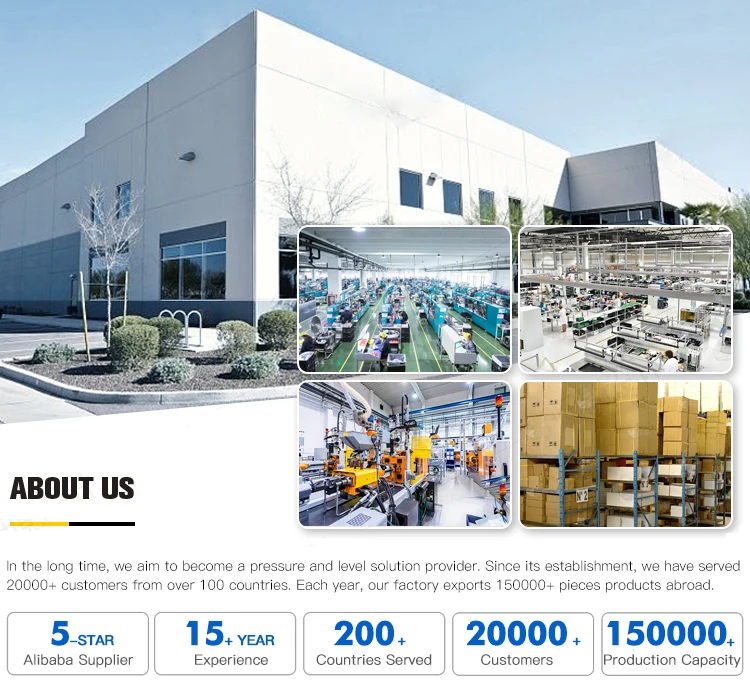

Our Factory
