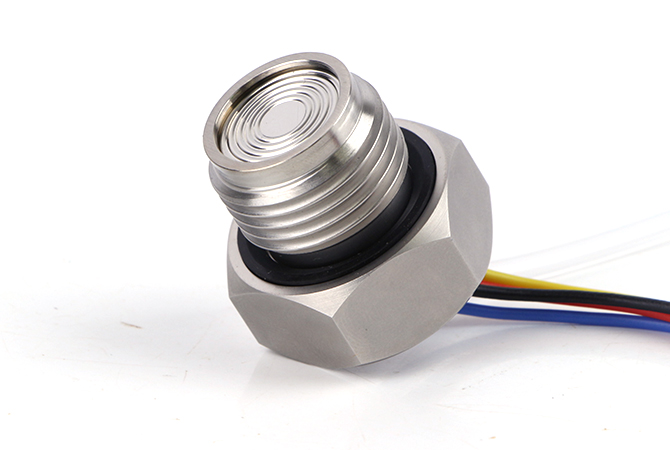

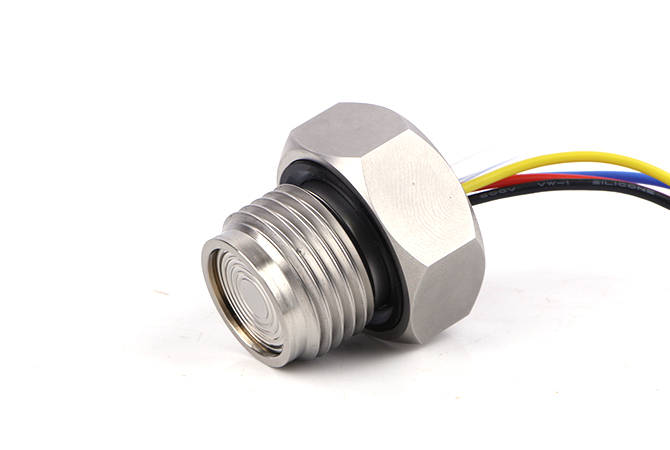

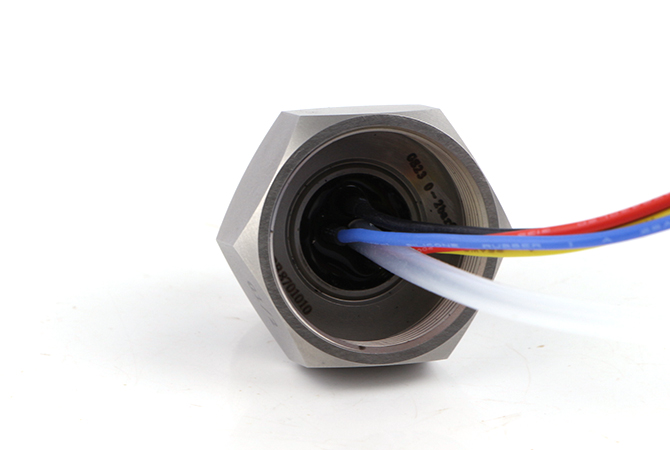

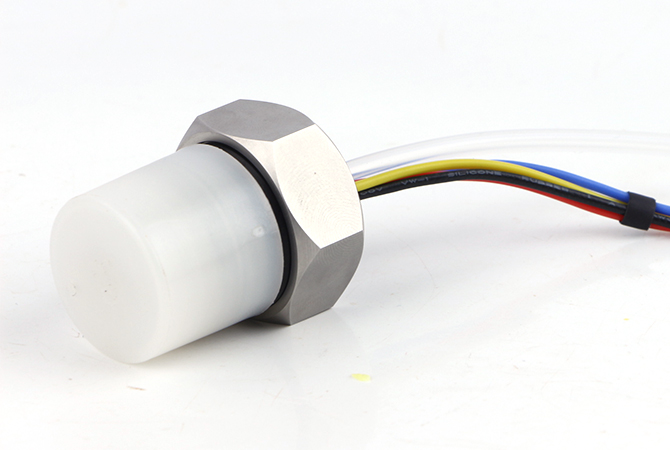

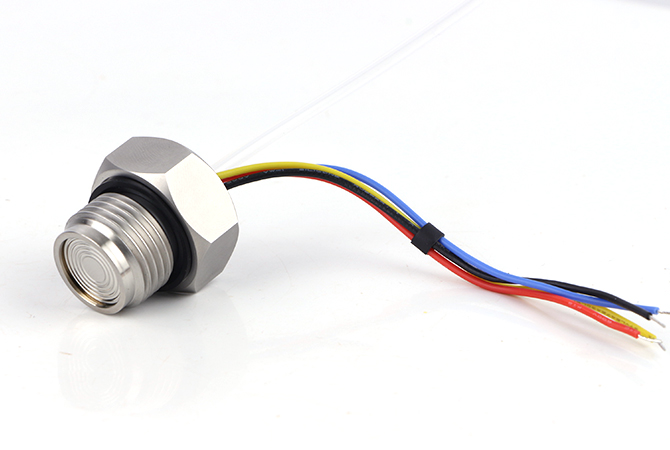

GS23

Sanitary pressure sensor

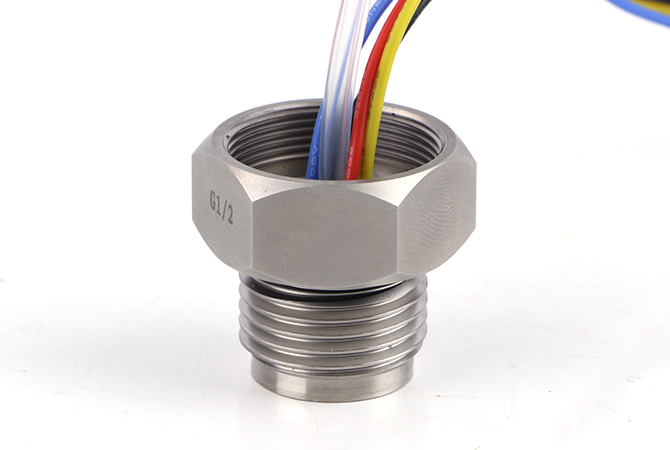

  • Threaded-connection design with standard M20×1.5 and G1/2 ports
  • Wide measuring range: -100kPa to 40MPa (thread type) / -100kPa to 10MPa (flush diaphragm type)
  • Supports gauge (G), absolute (A) and sealed gauge (S) pressure types
  • All-316L stainless steel construction
  • Oil-filled isolated structure compatible with various liquid and gas media
  • High overpressure safety: withstands 1.5× full-scale overload
  • Fast response: <1ms (10%–90%)
  • Constant current (1.5mA) or constant voltage (≤10V) excitation
  • Wide temperature range: -40℃ to +125℃ operating/storage
  • Exceptional durability: over 1×10⁸ pressure cycles (at 80%FS)
  • Withstands 10g RMS vibration (20–2000Hz) and 100g shock
