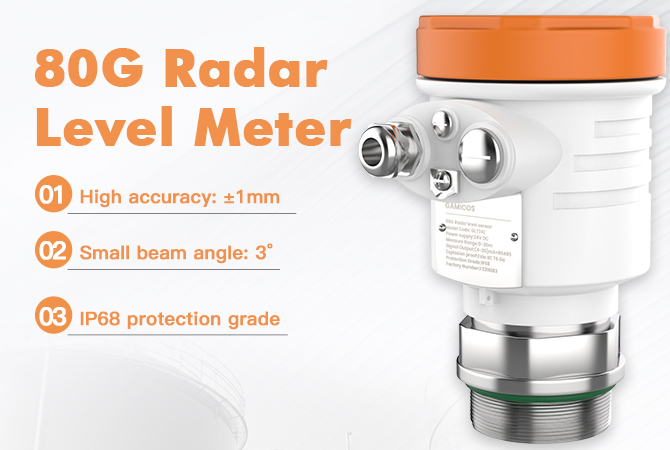

Radar Level Meter

80G, Small Blind, High Accuracy

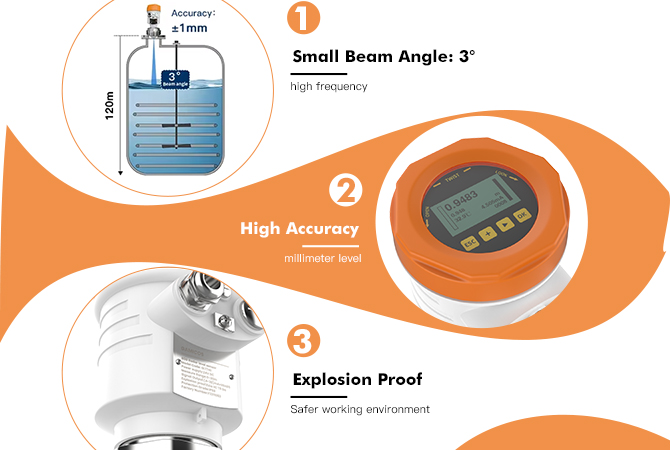

High frequency narrow beam: 3°beam angle
Millimeter level accuracy: ±1mm high accuracy
Strong anti-interference:Dust, steam, and foam
Small blind: Small containers and close-range measurement
Simple installation: greatly reduces the debugging cost.
Stable and maintenance-free:Non-contact, durable and reliable

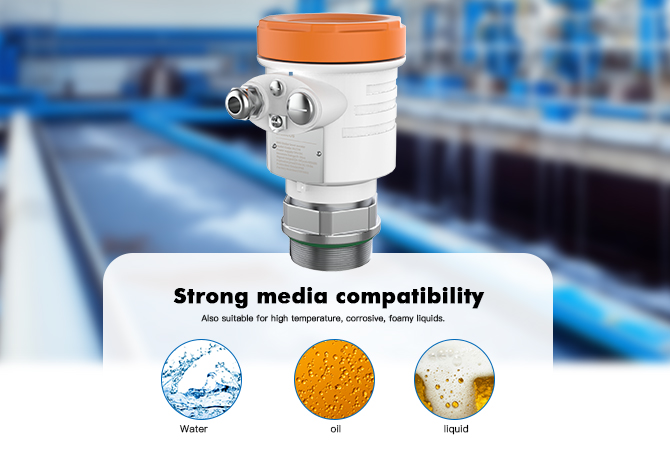

Wide range of applications: Almost all liquid medium
Get Quotes

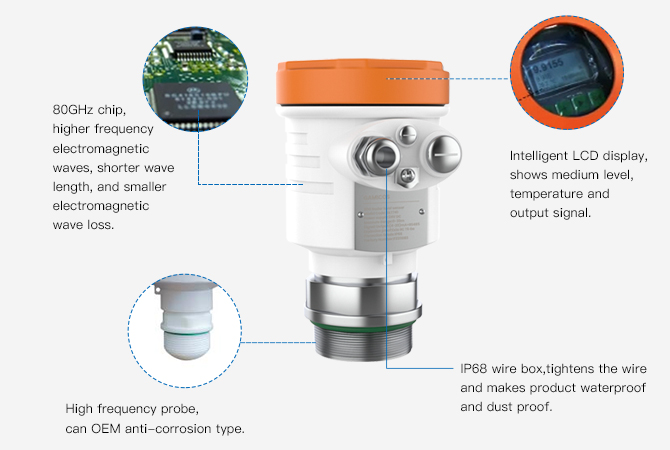

Our advanced GLT741 radar level transmitter uses high-frequency 80GHz technology to deliver incredibly

accurate measurements. Its secret is a highly focused beam that ignores common problems like foam, dust,

and tank obstructions. You can get reliable, millimeter-perfect readings for almost any liquid—from water to

sticky sludge. Best of all, it's designed for easy setup and requires virtually no maintenance, saving you time

and money.


Key Benefits in a Nutshell

  • Pinpoint Accuracy: Measures with millimeter precision.
  • Highly Focused Beam: Avoids obstacles and interference effortlessly.
  • Works Everywhere: Reliable in dust, steam, and heavy foam.
  • Easy Setup: Simplified installation saves you time.
  • Maintenance-Free: Built for long-term, hassle-free operation.


Technical Parameter

Frequency
76GHz~81GHz
Measurement range
0 m ~20m
Accuracy
±1mm
Beam angle
3°
Power supply
15~28.0VDC,2-wire
Signal output
4~20mA
Housing shell material
Aluminum alloy
Antenna type
Lens antenna
Process pressure
0.1~20MPa
Product dimension
Ø100*270mm
Electrical interface
M20*1.5
Protection grade
IP68
Explosion-proof grade
ExdiaIICT6
Installation method
Thread or flange

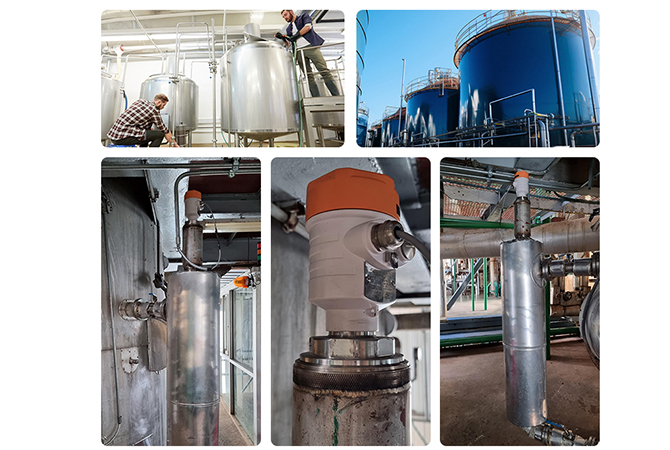

Application

The GLT741 radar leveltransmitter can be widely used in petrochemical industry, sewage treatment, food and
medicine, rivers and lakes, fuel tank level measurement.

Company Profile

GAMICOS is a brand focuses on instruments R&D, manufacturing, sales and service of the sensors, transmitters,

and the supporting instruments. The main products include pressure sensor, water level sensor, ultrasonic level

sensor, radar level meter, fuel level sensor and water level meter. Core products all passed EU CE, RoHS testing,

part products have obtained explosion-proof and flameproof certification, China Classification Society CSS

certification.


Through constant improving and enhancing product quality, and expanding product applicational area, our

products are widely used in petrochemical industry, water conservancy and hydrology, mechanical equipments,

process control, oil level measurement, agricultural irrigation, etc. Except for meeting domestic requirements,

GAMICOS has exported to more than 100 countries and regions globally including the US, Germany, Russia,

Portugal,  Saudi Arabia, South Asia, India, Australian, Brasil, etc.
