Fuel Level Sensor

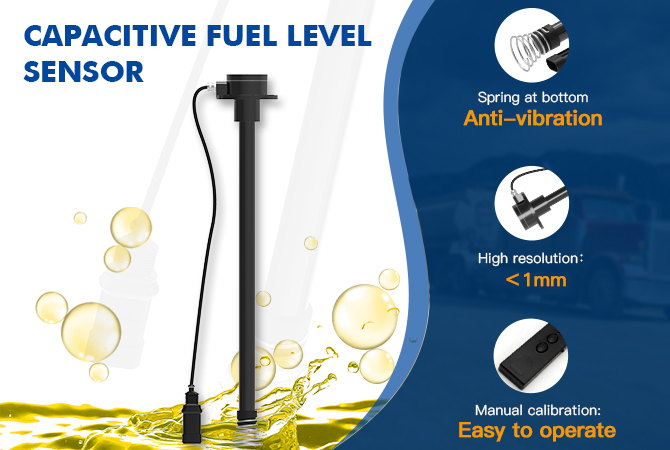

GAMICOS GLTV7capacitive fuel level sensorsenses the changes in capacitance caused by the rise and fall of the fuel

level to monitor the change of the fuel level. It is made of aluminum alloy and can be truncated arbitrarily according to

the size of your fuel tank. The entire product has no moving parts and is installed with a five-hole flange, which is simple

and convenient. GAMICOS GLTV7fuel level sensorhas high precision and can output digital and analog signals. The GPS

with the same modified signal is used to monitor the fuel level of the fleet's fuel tank and to avoid the occurrence of oil

leakage and theft. The GLTV7 oil level sensor can measure various oil products such as diesel, gasoline, kerosene, hydraulic

oil, etc. In addition, we can also provide you with customized services, ranges, output signals, including power supply,

probe rod material and other customized items.

Product Characteristics

• 120~1500mm range
• Can be truncated
• High resolution: 1mm
• Compatible with GPS tracker
• Digital and analog output
• Diesel, gasoline, kerosene
• OEM service provided
• No moving parts
• Easy to use and install

Product Parameter

• Range	120~1500mm（Can be customized 1500mm）
  Medium	Gasoline, Diesel fuel, Kerosene（It can not be used for the conductive medium）
  Output	Voltage output: 0～5V，0.5~4.5V, Digital output：RS232，RS485
  Power supply	5V, 10-32V
  Resolution	≤1mm
  Maximum operating current	<15mA
  Operating temperature	-40~+85℃
  Frequency	5s/time (Can be customized)
  Wire	PVC material (PA corrugated pipe cover is optional)
  Protection rank	IP65
  Probe material	Aluminum
  Junction Box material	Plastic
  Connector	AMP standard,Delphl,Tyco or others are optional

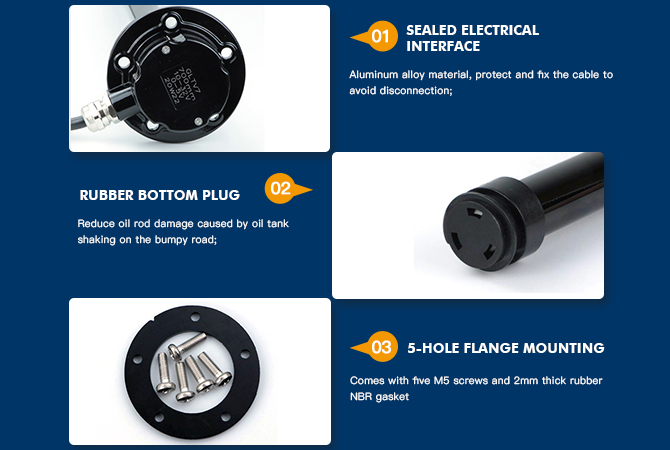

  Mounting	SAE standard 5 holes 5 pieces of M5 screws and 2 mm thick NBR gasket If the fuel tank, it is recommended optional 2mm thick FPM gasket




Application

FAQs

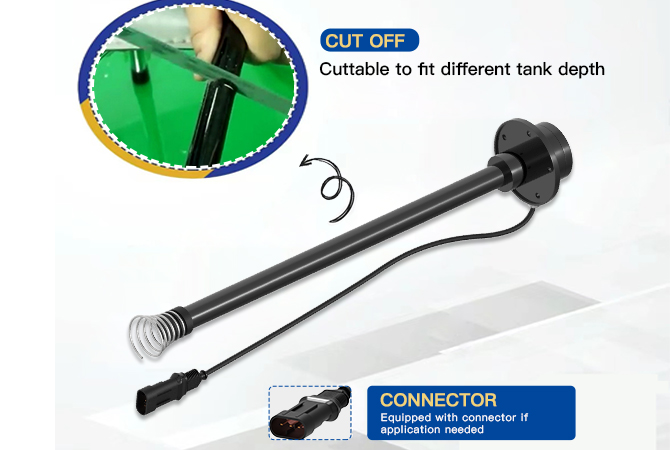

1. Can I truncate the probe myself?
Yes, use a hacksaw pipe cutter. Cut to tank depth and avoid cutting the electrode core (marked by the manufacturer).
2. Do I need calibration after truncation?
Yes, calibrate with the provided calibrator both for first use and after truncation to ensure accuracy.
3. What tank depths does it fit?
From 120mm to 2000mm, cut to match your tank exact depth
4. Why aluminum alloy probe?
Lightweight, corrosion-resistant (for mild oils), and easy to truncate (softer than stainless steel).
5. Is it waterproof?
Yes,IP67 protection
6. Can multiple sensors be used in one tank?
Yes, install 2-4 sensors evenly for large tanks; connect to a controller for average readings.
7. Can it connect to IoT platforms (e.g., MQTT-based systems) for remote monitoring?
Can use 4 G terminal to connected and check the data by Cloud plaftform or app
8. Can the GLTV7 sensor be used to measure conductive liquids (e.g., saltwater or electrolyte solutions)?
GLTV7 is only for gasoline, diesel, and kerosene, it cannot be used for conductive media, as conductivity

will distort capacitance signals and cause measurement errors.
